The perfect commercial grade screen for digital signage and digital menu boards.
75″ UHD (3840 x 2160)
500 nits brightness
Low reflections (high haze, 25%)
Designed for 24 Hours / 7 Days Operation
Easy to Install
The perfect commercial grade screen for digital signage and digital menu boards.
With UHD resolution (3840 x 2160) the colours and details of your content look vivid and realistic, and the wide viewing angle keeps content clear from the side. LG lists HDR support for the series.
Horizontal and vertical bezels are the same width (12.9 mm), so the screen looks balanced in landscape or portrait. The slim, uniform frame simplifies installation in retail environments.

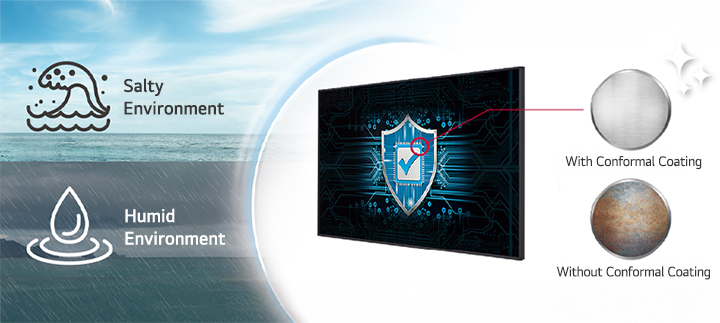

A partial conformal coating on the power board protects against salt, dust, iron powder and humidity for stable operation. The display also has an IP5X rating and shock monitoring, which alerts the administrator through the media controller when a physical impact occurs.

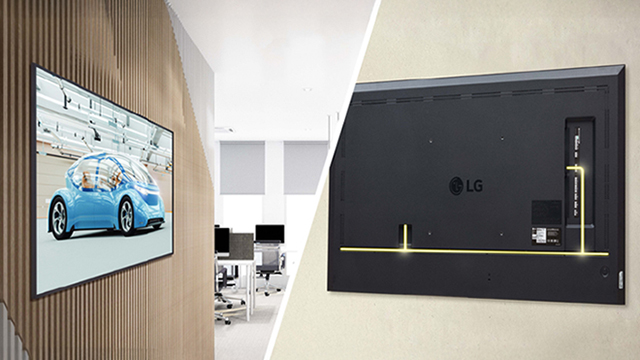

Thin bezels and simple cable management save space. Hidden power inlets let the display sit close to the wall, leaving only about 13.5 mm with the slim bracket.
Rated for 24 hours a day, 7 days a week, with a minimum lifetime of 50,000 hours, in landscape or portrait.
The screen surface has a high haze value (25% typical), which scatters ambient light so glare and reflections are reduced in bright spaces.
A high-performance SoC runs multiple tasks without a separate media player. The webOS platform provides app development tools with an intuitive interface, plus webOS partner apps for an SI-friendly (system integrator) environment.
A five-tiered defence across server, application, operating system, system and hardware, with each layer working independently. The webOS platform supports ETSI EN 303 645.
LG SuperSign is an integrated content management solution for organizing digital signage content, in versions such as SuperSign Cloud. SuperSign is purchased separately.
Source: LG's UH5Q-G datasheet and UH5Q-E product pages. Images are for illustration only.

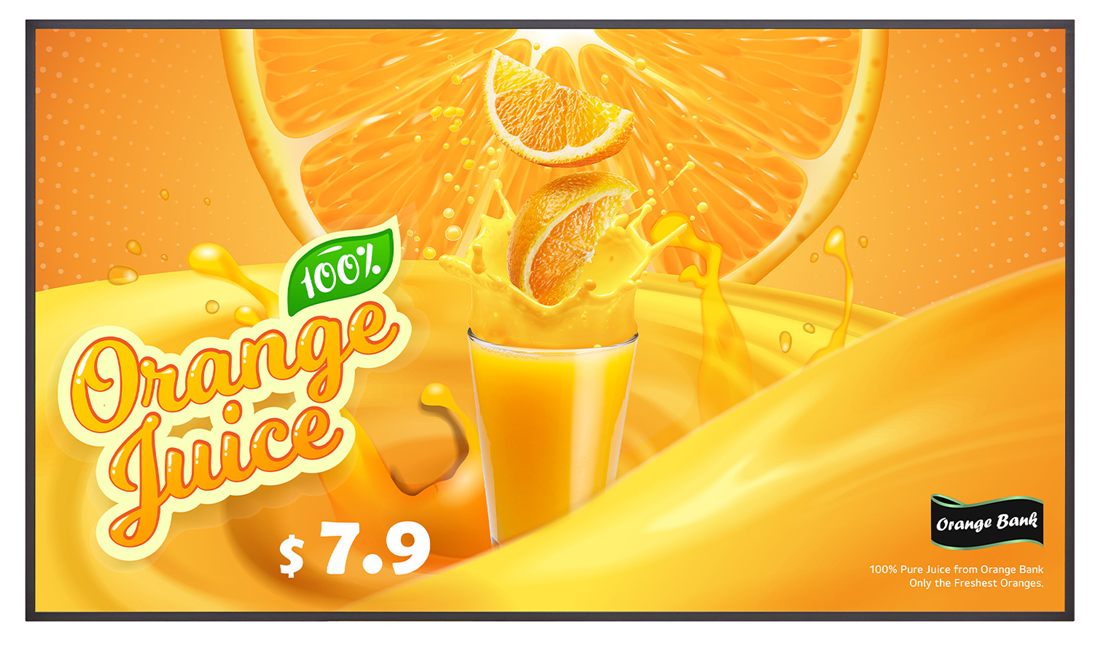

The LG 75UH5Q is a 75-inch UHD (3840 x 2160) commercial signage display in the LG UH5Q Series, rated at 500 nits (typical) and 24 hours / 7 days operation, running LG webOS 8.0. It measures 1679.5 x 958.7 x 29.7 mm (66.1 x 37.7 x 1.2 in), weighs 35.7 kg (78.7 lbs) and has a 600 x 400 mm VESA mount pattern. It can be mounted in landscape or portrait. Netvisual, based in Oakville, Ontario, supplies it with installation and support in Canada and the United States.
| Model | 75UH5Q (the ordering code carries a regional suffix) |
|---|---|
| Screen size | 75 inches |
| Panel | ADS, edge LED backlight, 16:9 |
| Resolution | 3840 x 2160 (UHD) |
| Brightness (typical) | 500 nits |
| Contrast ratio | 1200:1 (dynamic 1,000,000:1) |
| Colour gamut | BT.709 95% |
| Colour depth | 1.07 billion colours (8 bit + FRC) |
| Viewing angle | 178° x 178° |
| Response time (G to G) | 8 ms |
| Surface treatment (haze) | 25% |
| Operation | 24 hours / 7 days; rated lifetime 50,000 hours (minimum) |
| Orientation | Landscape and portrait |
| Platform | LG webOS 8.0; 16 GB internal memory, built-in Wi-Fi and Bluetooth |
| Inputs | 3 x HDMI (HDCP 2.2 / 1.4), DisplayPort, 2 x USB 2.0 Type-A, RJ45 (LAN), RS-232C in (4-pin phone jack), IR and light sensor receiver port |
| Outputs and control | Audio out, RS-232C out, built-in speakers (10 W x 2) |
| Bezel | 12.9 mm (even on all sides) |
| Dimensions (W x H x D) | 1679.5 x 958.7 x 29.7 mm (66.1 x 37.7 x 1.2 in), without the IR receiver and handle |
| Weight (display only) | 35.7 kg (78.7 lbs) |
| VESA mount pattern | 600 x 400 mm |
| Power consumption | 162 W typical, 243 W maximum; 100 to 240 V AC, 50/60 Hz, built-in power supply |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 10% to 80% |
| Software features | webOS 8.0, local content scheduling, group manager, USB plug and play, fail over, PIP, PBP (4), video tag (4), screen share, tile mode (up to 15 x 15), SNMP, Crestron Connected, Wake on LAN, HDMI-CEC, webRTC, smart energy saving; temperature and acceleration (gyro) sensors; auto brightness sensor (built in for Europe only, sold separately elsewhere); IP5X rating; conformal coating on the power board (partial) |
| Certifications | Safety CB / NRTL; EMC FCC Class B, CE, KC; ErP / ENERGY STAR: No / Yes |
Source: LG UH5Q-G datasheet (April 2026) and UH5Q-E product pages (lgcommercialdisplay.com). Series features, the 43, 49, 55 and 65 inch sizes and the haze values follow LG's UH5Q-G datasheet; dimensions, weights and power come from LG's UH5Q-E product page for each size, which also lists the 75 and 86 inch models. LG notes that specifications may vary by region. Netvisual checked these figures against that source on October 30, 2026. Inch and pound values are converted from LG's metric figures. Specifications can change; please confirm details with Netvisual before ordering.
| Size | Model | Brightness | Dimensions (W x H x D, mm) | Dimensions (W x H x D, in) | Weight | Power (typ. / max.) |
|---|---|---|---|---|---|---|
| 43" | 43UH5Q | 500 nits | 971.7 x 561 x 29.7 mm | 38.3 x 22.1 x 1.2 in | 9.4 kg | 83 / 124 W |
| 49" | 49UH5Q | 500 nits | 1104.3 x 635.5 x 29.7 mm | 43.5 x 25.0 x 1.2 in | 11.4 kg | 87 / 134 W |
| 55" | 55UH5Q | 500 nits | 1240.1 x 711.9 x 29.7 mm | 48.8 x 28.0 x 1.2 in | 14.3 kg | 103 / 154 W |
| 65" | 65UH5Q | 500 nits | 1459 x 835 x 29.7 mm | 57.4 x 32.9 x 1.2 in | 21.1 kg | 130 / 184 W |
| 75" | 75UH5Q (this model) | 500 nits | 1679.5 x 958.7 x 29.7 mm | 66.1 x 37.7 x 1.2 in | 35.7 kg | 162 / 243 W |
| 86" | 86UH5Q | 500 nits | 1928.8 x 1099.8 x 29.7 mm | 75.9 x 43.3 x 1.2 in | 53 kg | 170 / 280 W |
See all LG commercial grade screens, or contact our experts for a quote.
500 nits typical. That is the brightest rating in the LG UH5Q Series.
Yes, it supports both landscape and portrait.
1679.5 x 958.7 x 29.7 mm (66.1 x 37.7 x 1.2 in) wide x high x deep, 35.7 kg (78.7 lbs) without packaging, with a 600 x 400 mm VESA mount pattern.
LG rates the LG UH5Q Series for 24 hours / 7 days operation, which is continuous use, with a rated lifetime of 50,000 hours (minimum).
It runs LG webOS 8.0 with 16 GB internal memory and built-in Wi-Fi, and supports local content scheduling and USB plug and play, so simple signage can run without an external player. Interactive or complex content may still need one.
LG's product page for the LG UH5Q Series does not state the standard warranty period. Ask Netvisual for the warranty terms that apply to your order.
