Drive Through Menu Boards

Boost sales and reach more customers with digital drive through menu boards.

Request a Quote

Drive-thru menu boards are a fast and easy way to display food choices to your customers

Convenience, speed of service, accuracy, and clear communication are key factors in creating a positive drive-thru experience.

The Netvisual digital drive through menu board allows you to offer your best specials to customers with custom designed menus. Make changes on the fly to update pricing or pictures and schedule the menu options to change from breakfast to lunch and dinner automatically throughout the day!

Request a Demo of Netvisual's Drive Through Menu Boards

Update Your Drive-thru Menu Boards at Anytime From Anywhere

Easily update menu items, prices, images, videos, nutritional information and promotions by using Netvisual’s web-based digital menu boards software.

promo scheduling for pizza digital menu board

Advanced Menu Scheduling

  • Use the dayparting feature to pre-schedule your entire drive-thru menu to automatically update during breakfast, lunch and dinner hours.
  • Pre-schedule specials, limited time offers and promotions to update at specific times and days.
  • Strategically schedule your highest margin and best selling menu items to be promoted during your busiest hours

DRIVE THROUGH MENU BOARD SPECIFICATIONS

Display

46"55"
Samsung ModelSamsung OH46F (3)OH55F (3)
Panel Type120Hz E-LED BLU 120Hz E-LED BLU
Display Size (in.).46 (45.9 diagonal)55 (54.6 diagonal)
OrientationPortraitPortrait
Resolution (pixels)1921 x 1080 (Full HD)1921 x 1080 (16:9)
Brightness (Typ.)2,500 nits2,500 nits
Contrast Ratio (Typ.)5000:14000:1
Protection Glass5T Tempered5T Tempered
Viewing Angle (H/V)178/178178/178
Operation Hour24/724/7

Environment

46"55"
Operating Temperature (°F/°C)-22 to +122/-30 to +50-22 to +122/-30 to +50
Operating Humidity (%)10-8010-80
IP Compliance (Display/Enclosure)IP56/IP66IP56/IP66

Connectivity

46"55"
InputHDMI (2), HDBaseT LAN, USB 2.0, RS232HDMI (2), HDBaseT LAN, USB 2.0, RS232
OutputRJ45 LAN, RS232, Stereo Mini Jack RJ45 LAN, RS232, Stereo Mini Jack
External ControlRS23C (In/Out), RJ45 (In/Out), HDBaseTRS23C (In/Out), RJ45 (In/Out), HDBaseT

Power

46"55"
Input PowerAC 100-240V (+/-10%), 50/60HzAC 100-240V (+/-10%), 50/60Hz
Power Consumption (W)Typ. 880/Max. 936Typ. 1020/Max. 1108

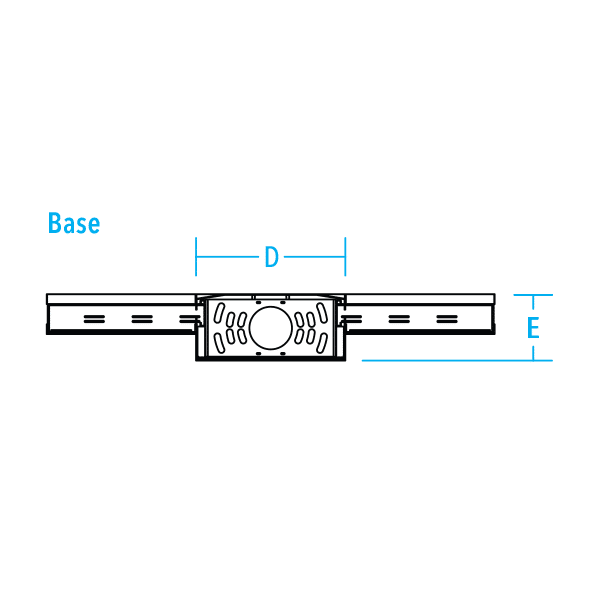

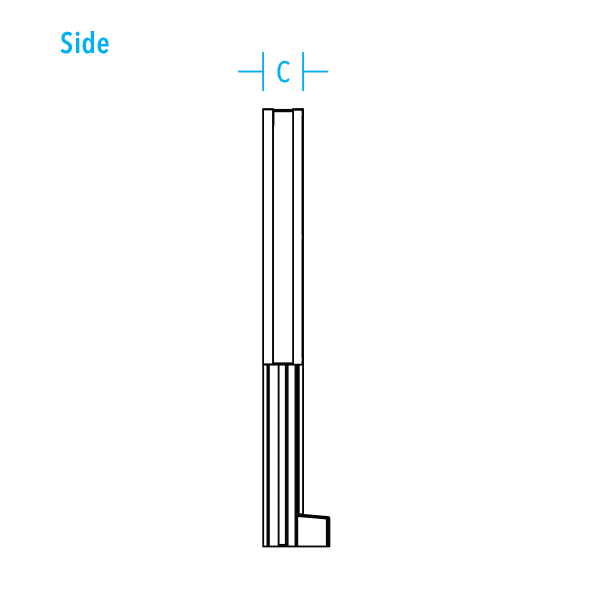

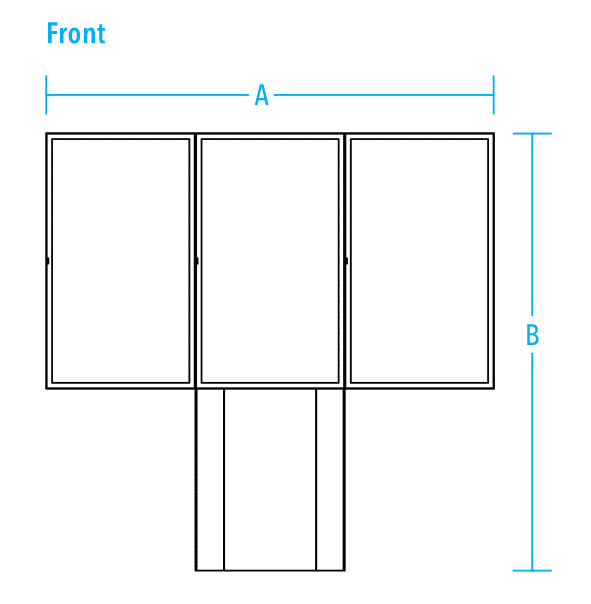

Enclosure Dimensions
46"55"
Width (in./mm) (A)73.75/187386.5/2197
Height (in./mm) (B)72.5/184280/2032
Depth (in./mm) (C)6.75/1716.75/171
Base Width (in./mm) (D)24.57/62424.57/624
Base Depth (in./mm) (E)10.91/27710.91/277

Enclosure Weight

46"55"
(lbs/kgs)633/288 678/308

Enclosure Construction

46"55"
FrameCR Steel Thick Gauge, WeldedCR Steel Thick Gauge, Welded
ExteriorAluminum Thick Gauge, WeldedAluminum Thick Gauge, Welded

Enclosure Finish

46"55"
Panels (Std.)Powder Coat, RAL 9005 Jet BlackPowder Coat, RAL 9005 Jet Black
Trim (Std.)Powder Coat, RAL 9005 Jet BlackPowder Coat, RAL 9005 Jet Black

Safety

46"55"
Power Disconnect600V, 30A, 3 Pole600V, 30A, 3 Pole
Surge Suppressor (Optional)Type 1, 50kA Capacity, 200kA SCCRType 1, 50kA Capacity, 200kA SCCR
CertificationUL 48/CSA C22.2 No. 207 UL 48/CSA C22.2 No. 207

Extras

46"55"
Warranty3 Year Standard3 Year Standard
Accessories (Included)Multi-port Patch Panel, Cat6A and HDMI Cabling, Integrated Junction Box, Tamper Proof Hardware,
Lift Assist Eye Bolts, UL/CSA Certification, Installation Guide, Warranty Card		Multi-port Patch Panel, Cat6A and HDMI Cabling, Integrated Junction Box, Tamper Proof Hardware,
Lift Assist Eye Bolts, UL/CSA Certification, Installation Guide, Warranty Card

Start your drive through menu board project today!

Let our team of drive through digital signage experts guide you every step of the way.
